B58 Stage 2 Misfire Under Boost: The 4 Fixes That Actually Solve It

If your B58 starts breaking up, stuttering, or outright misfiring at wide-open throttle after going Stage 2, the answer usually is not “add more tune” or “throw random parts at it.”

Most of the time, the calibration is exposing a hardware weakness that was already there.

At Synergy BMW Tuning, the same four root causes show up again and again:

1. a leaking or failing stock plastic charge pipe
2. spark plugs with the wrong gap
3. weak coils under higher cylinder pressure
4. charge temperatures climbing too high under repeated pulls

1) B58 charge pipe failure is one of the first things to check

Once boost goes up, the factory plastic charge pipe becomes a known weak point. Even a small leak can create hesitation, throttle weirdness, unstable boost, and misfire symptoms that feel like a “bad tune.”

What we look for first:

• boost target vs actual not tracking cleanly
• audible leak or connection problem
• coupler movement under load
• pipe cracks around common stress areas

2) Plug gap matters more than most people think

A tuned B58 increases cylinder pressure. When plug gap is too large, spark blowout starts showing up under load even when the car seems fine during normal driving.

For many Stage 2 combinations, a tighter plug gap is part of the fix. We also verify the actual plug type in the car instead of assuming the last person installed the right one.

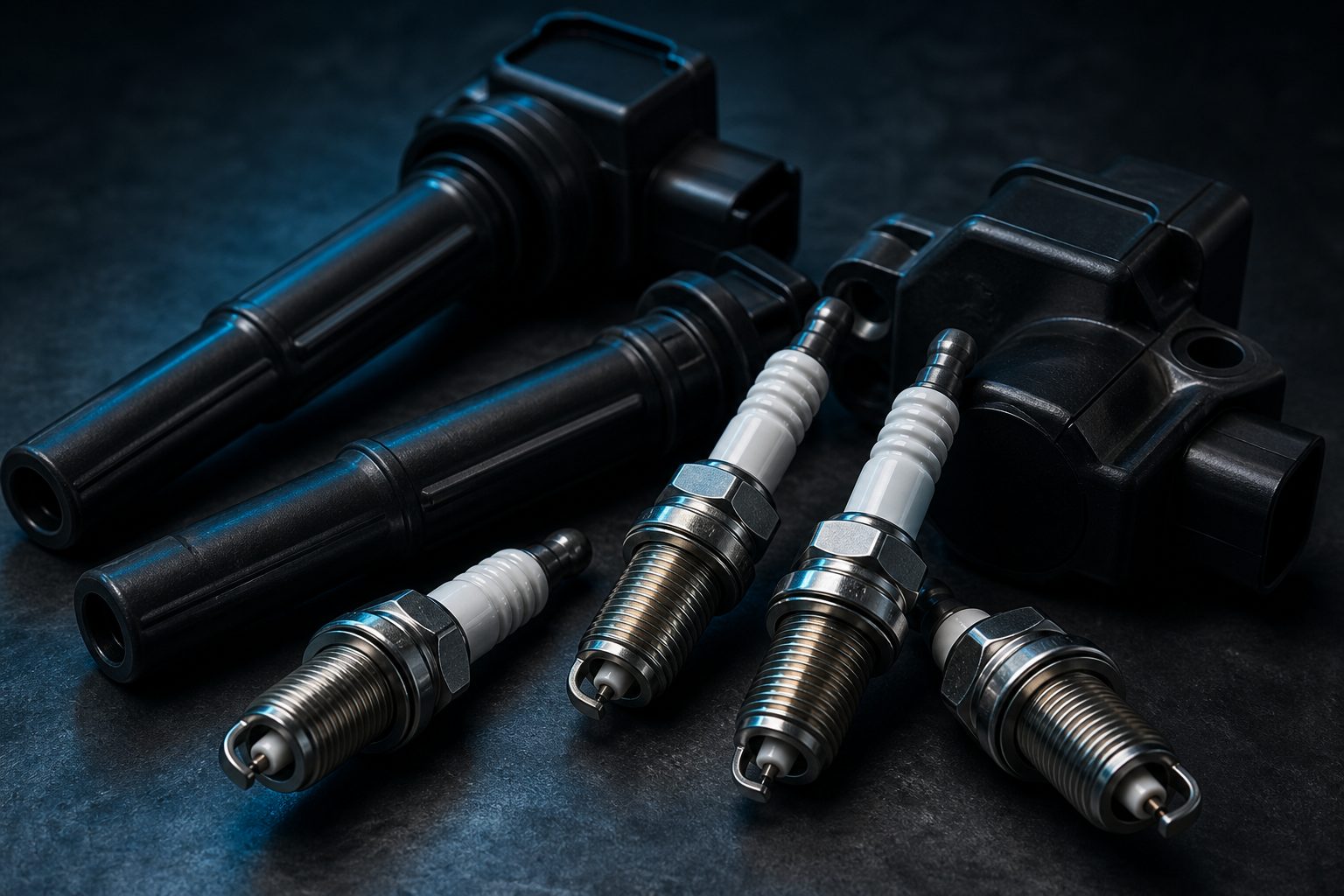

3) Weak coils can hide until boost goes up

A coil that seems acceptable on a mild setup can start failing once airflow and cylinder pressure rise. That is why we review logs instead of guessing. A proper diagnosis can separate a coil issue from a boost leak or a temperature-related problem.

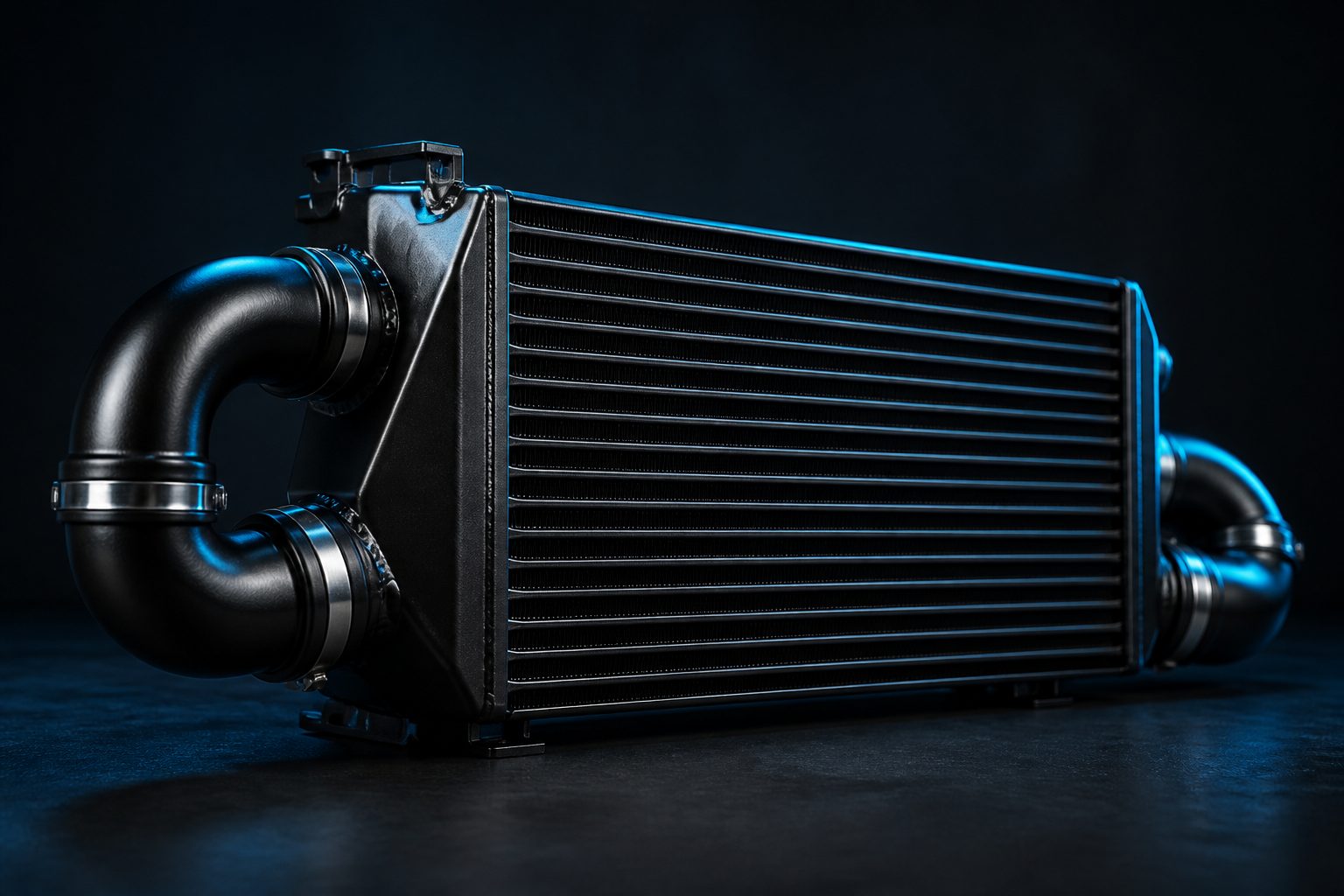

4) Heat soak kills consistency

When charge temps rise, the car can start pulling timing, behaving inconsistently, or feeling flat from one pull to the next. That is why cooling support matters on a real Stage 2 setup.

A car that works on one cool-night pull but falls apart after back-to-back runs is telling you something important about temperature control.

The Synergy BMW Tuning process

We fix B58 misfire issues with a simple order of operations:

1. Log review

We review boost, timing, fuel pressure, lambda, IAT, and misfire behavior.

2. Hardware correction

We identify the weak point first: charge pipe, plugs, coils, or cooling.

3. Calibration refinement

Once the hardware is stable, we refine the ECU calibration around your exact setup and fuel.

4. Validation

We confirm the result with clean follow-up logs so the car is repeatable, not just “better once.”

Is this your car?

This article is for you if:

• your B58 is Stage 1 or Stage 2 and breaks up at WOT
• your car runs an OTS map and you want a setup matched to your hardware
• you are upgrading plugs, coils, intercooler, or charge pipe and want the tune built around it

Ready to fix it correctly?

If your B58 is misfiring under boost, send your build list and logs through the intake or contact page. We will help you identify the real cause and get the car running clean.
